Installing the seal on left and right side panel

Installing the side panel seal

NOTE: Description is for left component only.
Procedure on the right side is identical.

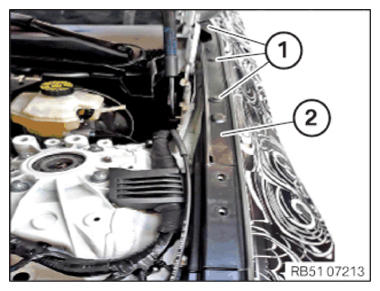

Guide the seal (2) in and install it.
Mount the expanding rivets (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
