Install the exhaust bracket

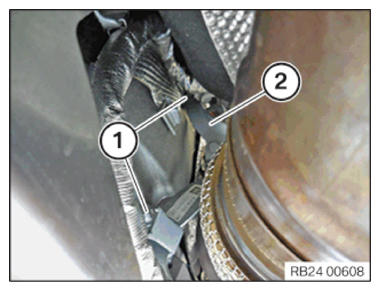

Install the exhaust bracket (2) .

Tighten down screws (1) .

TIGHTENING TORQUE SPECIFICATION

Transmission to engine
M8	Tightening torque	19 Nm
M12	Tightening torque	66 Nm

G15580175

Courtesy of BMW OF NORTH AMERICA, INC.

Version A:

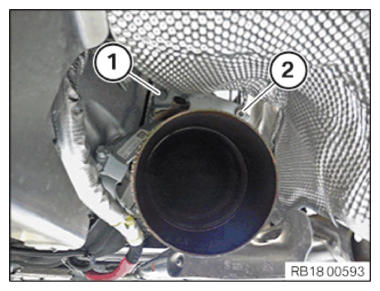

Tighten down screw (1) .

TIGHTENING TORQUE SPECIFICATION

Catalytic converter to holder
M8 Replace screw.	Tightening torque	19 Nm

G15580176

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten nut (2) .

TIGHTENING TORQUE SPECIFICATION

Catalytic converter to holder
M8 Replace nut.	Tightening torque	19 Nm

Version B:

Tighten nut (1) .

TIGHTENING TORQUE SPECIFICATION

Catalytic converter to holder
M8 Replace nut.	Tightening torque	19 Nm

G14193064

Courtesy of BMW OF NORTH AMERICA, INC.

Install the exhaust bracket (2) .

Tighten down screws (1) .

TIGHTENING TORQUE SPECIFICATION

Transmission to engine
M8	Tightening torque	19 Nm
M12	Tightening torque	66 Nm

G14193114

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten nuts (1) .

TIGHTENING TORQUE SPECIFICATION

Catalytic converter to holder
M8 Nut Replace nut.	Tightening torque	19 Nm

G12731094

Courtesy of BMW OF NORTH AMERICA, INC.
