If installed: Remove the silencer of the stationary heating
If installed: Remove the silencer of the stationary heating

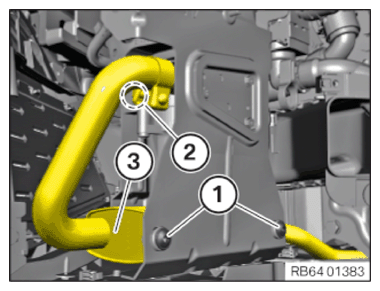

Remove the silencer
Loosen screws
(1)
.
Loosen nut
(2)
.
Detach the silencer
(3)
upwards from stationary heating.
Guide out the silencer
(3)
and remove.
