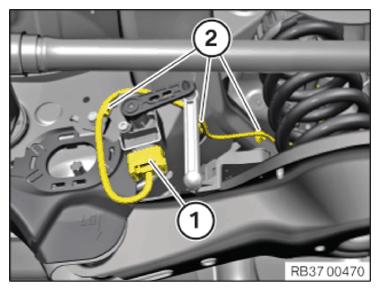

Fastening the cable for the ride height sensor on the rear axle support
NOTE:
The following step(s) must be performed if the listed component(s) is/are installed.
- Secure the cable with the holders (2)
on the rear axle support.
- Connect the connector (1)
to the ride height sensor and lock it.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
