Emptying the coolant circuit of the electric drive unit with compressed air

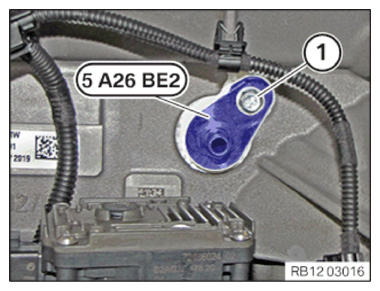

Tighten down screw (1) .

TIGHTENING TORQUE SPECIFICATION

Adapter to coolant connection
	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

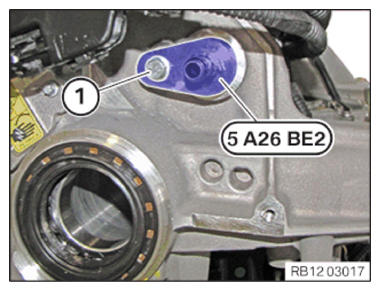

Tighten down screw (1) .

TIGHTENING TORQUE SPECIFICATION

Adapter to coolant connection
	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

2 472 475 Insert on 5 A26 BE2.
Move tap (1) to the shown position (close).
Connect compressed air hose (2) 2 472 475.

Courtesy of BMW OF NORTH AMERICA, INC.

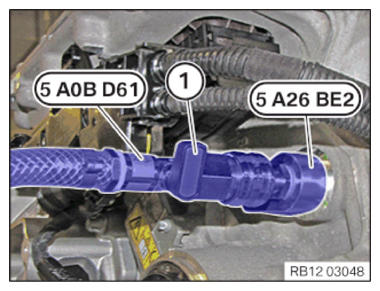

5A0BD61 Insert on 5A26BE2.
Move tap (1) to the shown position (close).

Courtesy of BMW OF NORTH AMERICA, INC.

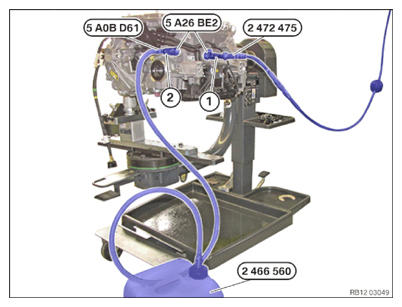

5A0BD61 Connect using special tool 2 466 560.
Open tap (1) .
Open tap (2) until the coolant no longer leaks from the electric drive unit.
Close tap (2) .
Close tap (1) .
Remove special tool 5 AOB D61.
Remove special tool 2 472 475.

Courtesy of BMW OF NORTH AMERICA, INC.

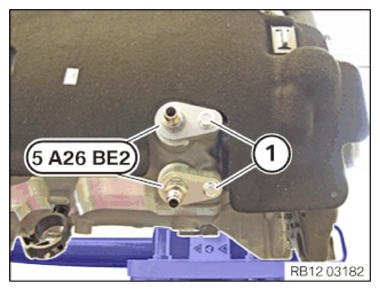

Tighten down screw (1) .

TIGHTENING TORQUE SPECIFICATION

Adapter to coolant connection
	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

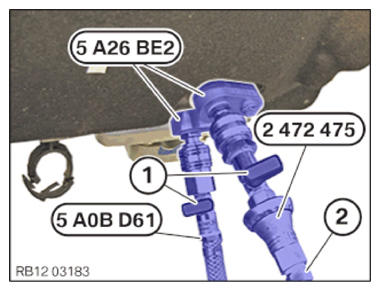

2 472 475 Insert on 5 A26 BE2 .
5 A0B D61 Insert on 5 A26 BE2 .
Move taps (1) to the pictured position (close).
Connect compressed air hose (2) 2 472 475 .

Courtesy of BMW OF NORTH AMERICA, INC.
5 A0B D61 Connect using special tool 2 466 560.
Open tap (1) .
Open tap (2) until the coolant no longer leaks from the electric drive unit.
Close tap (2).
Close tap (1) .
Remove special tool 5 A0B D61.
Remove the special tool 2 472 475.

Courtesy of BMW OF NORTH AMERICA, INC.
