Detaching the wiring harness of the EPS from the front axle support

NOTE: TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.

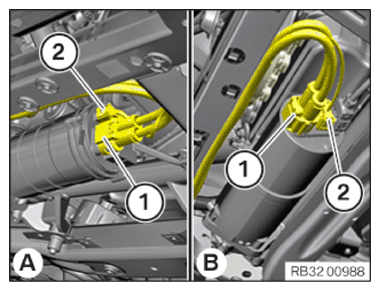

Version A:
Unlock and disconnect the plug connections (1) and (2) .
Version B:
Unlock and disconnect the plug connections (1) and (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

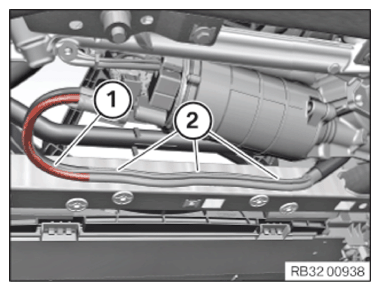

Loosen the holder (2) .
Set wiring harness (1) aside.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.

Version A:
Unlock and disconnect the plug connections (1) and (2) .
Version B:
Unlock and disconnect the plug connections (1) and (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen the holder (2) .
Set wiring harness (1) aside.

Courtesy of BMW OF NORTH AMERICA, INC.
