Attaching the left and right tension struts on the swivel bearing

NOTE: Description is for left component only. Procedure on the right side is identical.

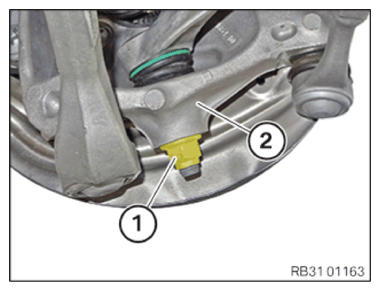

Tighten nut (1) .

NOTE: Counter-hold at the Torx socket.

TIGHTENING TORQUE SPECIFICATION

Tension strut to swivel bearing
M14 Replace nut.	tightening torque	175 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
