Install brake light switch

Clip the holder for the brake light switch (1) into the brake pedal.
Press the brake pedal fully.
Slide brake light switch (2) into holder (1) up to the stop.
Counter support holder (1) and move the brake pedal slowly back to the initial position.
Connect connector (3).

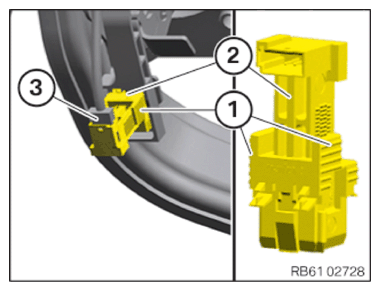

G12673486

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
