Installing the engine wiring harness for sensor system 1

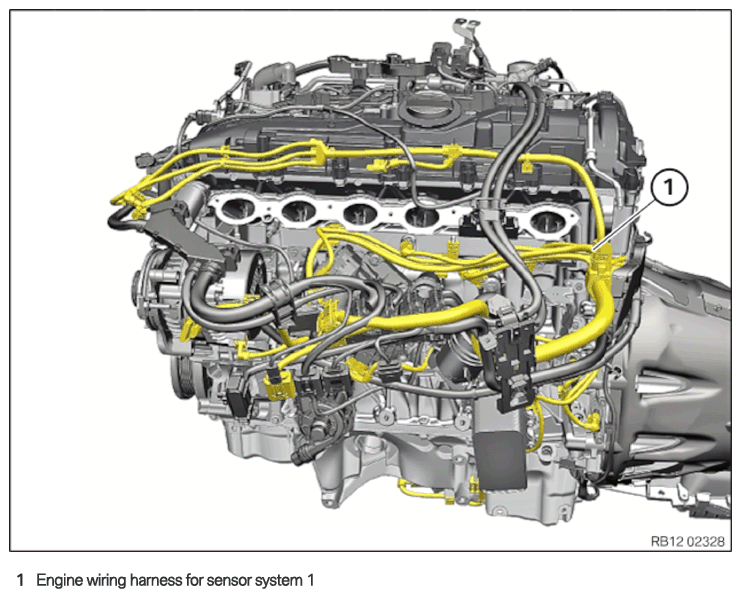

Engine wiring harness for sensor system 1
NOTE:
RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
- Route all cables without abrasions, do not trap and crush.
- Feed in and install the engine wiring harness (1)
for the sensor system 1.
- Feed in and install the engine wiring harness (1) for the sensor system 1.

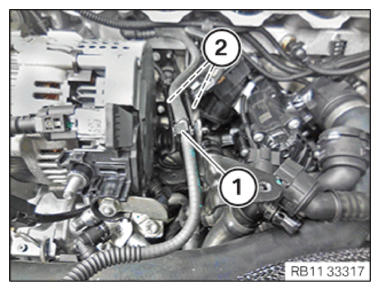

- Secure the clamps (arrows).
- Connect connectors (1)
and lock.
The connector (1) must engage audibly.
- Feed in and install the engine wiring harness (2) for the sensor system 1.
- Connect connectors (1)
and lock.
The connectors (1) must engage audibly.
- Secure the clamps (arrows).
- Feed in and install the engine wiring harness (2) for the sensor system 1.

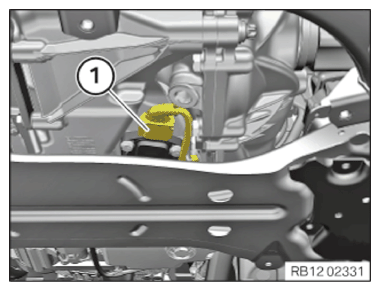

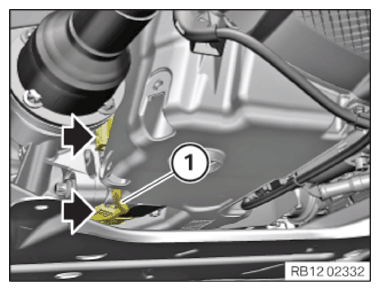

- Tighten down screws (1) .
TIGHTENING TORQUE SPECIFICATION
| Cable bracket on rear cylinder head/transmission | ||
|---|---|---|
| M6 x 20 | tightening torque | 8 Nm |
- Guide in the wiring harness section (2) and install.
- Make sure that the lock (arrow) engages correctly.
- Tighten down screws (1) .
TIGHTENING TORQUE SPECIFICATION
| Cable bracket on rear cylinder head/transmission | ||
|---|---|---|
| M6 x 20 | tightening torque | 8 Nm |
- Connect connectors (1)
and (2)
and lock.
The connectors (1) and (2) must engage audibly.
- Connect connectors (3)
and lock.
The connector (3) must engage audibly.
- Connect connectors (2)
and lock.
The connectors (2) must engage audibly.
- Connect connectors (1)
and lock.
The connectors (1) must engage audibly.
- Secure the clamps (arrows).
- Feed the support (2) in for the intake plenum and install it.
- Tighten down screws (1) .
TIGHTENING TORQUE SPECIFICATION
| Support to cylinder head | ||
|---|---|---|
| M6X16 | tightening torque | 8 Nm |
- Secure clamps (1) .
- Secure clamps (2) .
