Install the wiring harness section for the ignition and injectors

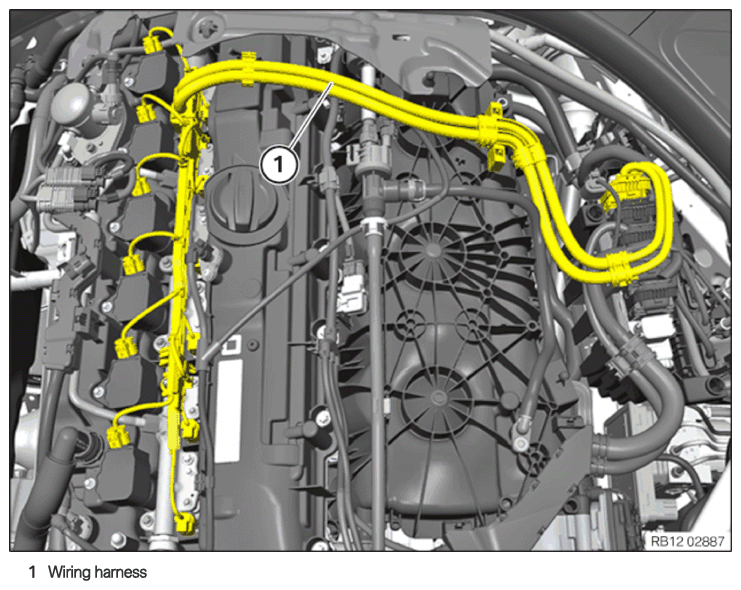

Wiring harness for the injectors and ignition coils
NOTE:
RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
- Route all cables without abrasions, do not trap and crush.

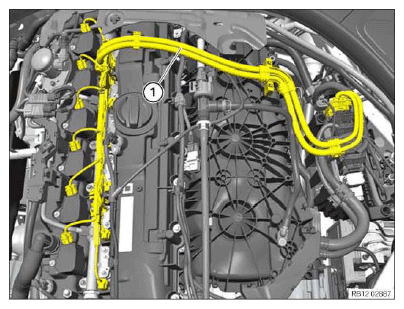

- Guide in and install the wiring harness (1)
for the injectors and ignition coils.

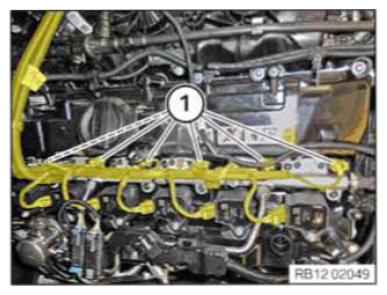

- Connect connectors (1)
and lock.
The connectors (1) must engage audibly.

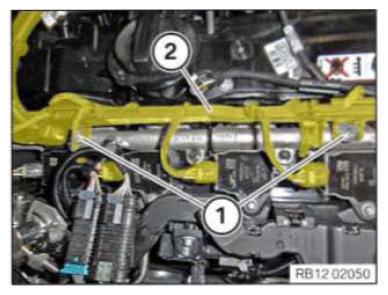

- Guide in the wiring harness section (2) and install.

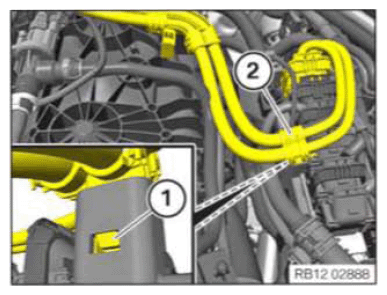

- Ensure that the lock (1)
engages audibly.

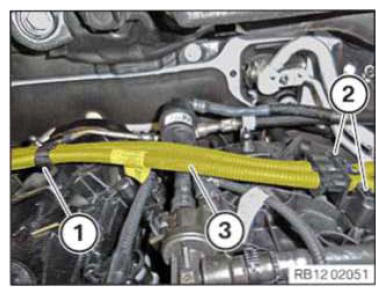

- Insert and install the wiring harness (3) .
- Connect the holder (2)
and lock.
The holder (2) must engage audibly.
- Secure clamps (1)
.
- Guide in the wiring harness section (2) and install.
- Tighten nuts (1) .
TIGHTENING TORQUE SPECIFICATION
| Ground cable to rail | ||
|---|---|---|
| M6 | tightening torque | 5 Nm |
- Connect the connector (1)
to the injectors.
The connector must engage audibly.
- Lock the locking mechanism in arrow direction.

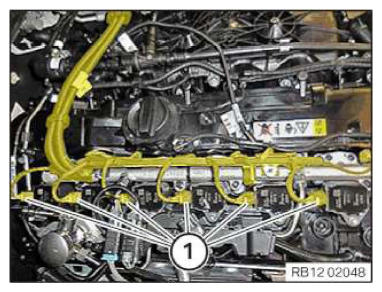

- Connect connectors (1)
and lock.
The connectors (1) must engage audibly.
- Connect connectors (1)
and lock.
The connectors (1) must engage audibly.
Follow-up work
- Refer to INSTALLING THE COVER OF THE DME CONTROL UNIT .
- Refer to MOUNTING THE SERVICE OPENING IN THE SOUND INSULATION ON TOP OF THE ENGINE .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to RECONNECTING ALL BATTERY GROUND LEADS .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
