Engine Electrical System -- Repair (G22, G23 & G26) (1 Of 2)
>>
12 36 Electric Powertrain Control Unit, Brush Module, Radial Shaft Seal
>>
12 37 920 Replace the lid for the brush module rear (Drive unit removed) (M440i and M440i xDrive coupe/convertible/Gran Coupe sedan)
>>
Removing rotor position sensor
Removing rotor position sensor

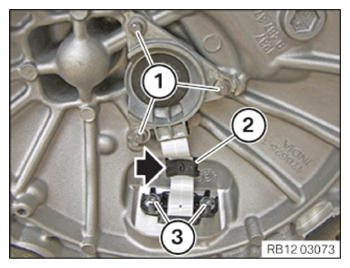

Open the holder (2) at the point marked with an arrow.
Loosen screws (1).
Loosen screws (3).
Courtesy of BMW OF NORTH AMERICA, INC.

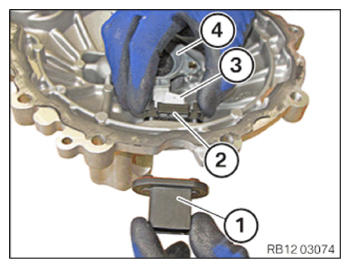

Remove the upper section of connector (1) from the lower section of connector (2).
Remove the rotor position sensor (4) with ribbon cable (3).
Do not damage the ribbon cable (3).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
