Install the control unit for the trailer hitch
NOTE:

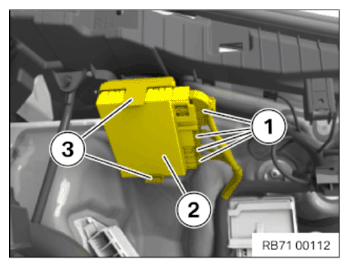

Schematic diagram is for example purposes. Some parts may differ in certain details.
- Clip in the control unit for the trailer hitch (2) with the detents (3).
- Connect connectors (1) and lock.
Follow-up work
- Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON RIGHT .
- Refer to INSTALLING LED IN LUGGAGE COMPARTMENT ON RIGHT .
- Refer to INSTALLING COVER FOR LUGGAGE COMPARTMENT ON RIGHT .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to INSTALLING THE FRONT STORAGE SHELF .
- Refer to RECONNECTING ALL BATTERY GROUND LEADS .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to ENCODING/PROGRAMING CONTROL UNIT(S) .
