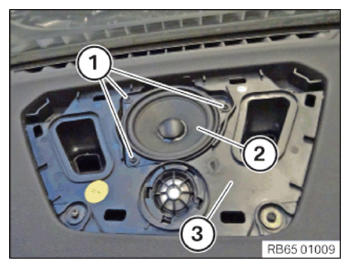

When replacing the speaker holder: Remounting the mid-range speaker
- Loosen screws (1).
- Remove the mid-range speaker (2) from the speaker holder (3).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
- Install the mid-range speaker (2) in the speaker holder (3).
- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATION
| Loudspeaker to dashboard/loudspeaker to door |
| screw |
Tightening torque |
1.8 Nm |
