Replacing the post amplifier
NOTE:

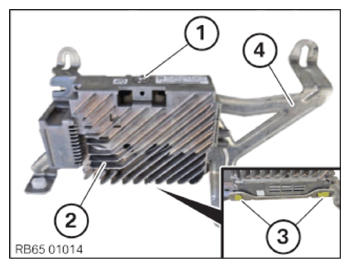

Schematic diagram is for example purposes. Some parts may differ in certain details.
- Loosen screw (1) .
- Guide out post amplifier (2) with the guides (3) below on the holder (4) .
- Remove the post amplifier (2)
.
- Replace the post amplifier (2)
.
Parts: Post amplifier
- Feed in the post amplifier (2) with the guides (3) below on the holder (4) and position it correctly.
- Tighten down screw (1) .
TIGHTENING TORQUE SPECIFICATION
| Post amplifier to holder | ||
|---|---|---|
| Screw | tightening torque | 3.3 Nm |
