Install clutch
NOTE:
RISK OF DAMAGE
Damage to the self-adjusting clutch (SAC).
Improper cleaning of the self-adjusting clutch may cause functional impairments on the adjustment unit and the damping springs.
Damage to the self-adjusting clutch (SAC).
Improper cleaning of the self-adjusting clutch may cause functional impairments on the adjustment unit and the damping springs.
- Do not clean the self-adjusting clutch, clutch disc or pressure plate using a high pressure cleaner or in a washer.
- Clean friction surface only.
NOTE:
TECHNICAL INFORMATION
Install the clutch disc in the correct position.
Note the designations for "engine end"/"transmission side"!
Handle the clutch disc carefully. Do not touch the surfaces of the friction linings.
Install the clutch disc in the correct position.
Note the designations for "engine end"/"transmission side"!
Handle the clutch disc carefully. Do not touch the surfaces of the friction linings.
- Place the clutch disc (1) in the correct installation position in the clutch housing (2).

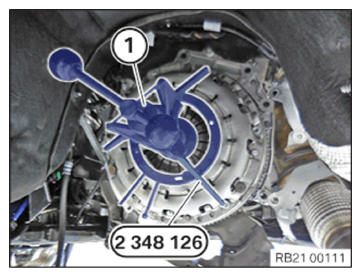

- Fit the special tool 2 348 126 and hand-tighten at the knurled screw (1).
- Screw in the spindle (1) until the diaphragm spring (2) is pre-tensioned up to the stop.

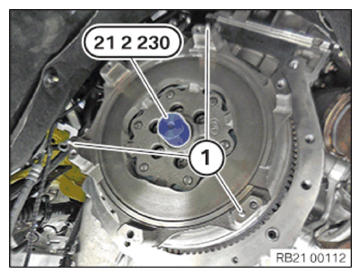

- Center the clutch with the special tool 0 494 649 (21 2 230) on the flywheel .
- Fix the clutch via the dowel pin (1).
- Install the self-adjusting clutch on the flywheel.
- Check whether the self-adjusting clutch is fixed by using the dowel pin.
- Replace the bolts (arrows).
Parts: Screws
- Insert and tighten screws (arrows).
TIGHTENING TORQUE SPECIFICATIONS
| Clutch to flywheel M8 10.9 Replace screws. |
Joining torque | 15 Nm |
| Angle of rotation | 90° |
- Release the spindle (1) until the diaphragm spring (2) is fully relieved.
- Release the knurled screw (1) and remove the special tool 2 348 126 from the self-adjusting clutch.
- Hold the special tool 0 493 840 (21 2 180) at the handles (2) and release the knurled screws (1) simultaneously.
- Remove the special tool 0 493 840 (21 2 180) from the self-adjusting clutch.
- Pull out the special tool 0 494 649 (21 2 230) by using the accompanying screw (1) from the clutch disc.
Follow-up work
- Refer to INSTALLING THE MANUAL TRANSMISSION (GS6L55TZ) .
- Refer to FASTENING THE PROP SHAFT (PARTIALLY REMOVED) .
- Refer to INSTALLING FRONT HEAT SHIELD .
- Refer to INSTALLING THE REAR HEAT SHIELD .
- Refer to CHECKING/ADDING TO THE OIL LEVEL IN THE MANUAL TRANSMISSION (GS6L55TZ) .
- Refer to INSTALLING THE LEFT THRUST FIELD .
- Refer to INSTALLING TANK COVER .
- Refer to INSTALLING TRANSMISSION CROSS MEMBER .
- Refer to INSTALLING THE INTERMEDIATE PIPE .
- Refer to INSTALLING EXHAUST SYSTEM .
- Refer to INSTALLING THE CONNECTING SUPPORTS ON THE TUNNEL .
- Refer to INSTALLING THE OXYGEN SENSOR MONITOR FOR CYLINDERS 4 TO 6 .
- Refer to PARTIALLY INSTALLING THE COOLANT EXPANSION TANK OF THE HIGH-TEMPERATURE COOLANT CIRCUIT .
- Refer to INSTALLING THE RIGHT INTAKE FILTER HOUSING (FRONT-END STRUT REMOVED) .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING THE LEFT AND RIGHT FRONT UNDERSHIELD .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE FRONT SPOILER .
- Refer to INSTALLING THE FRONT-END STRUT .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE STRUT BRACE .
- Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
