Installing the tailgate trim panel

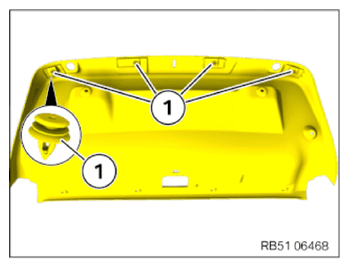

Check the clips (1) for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

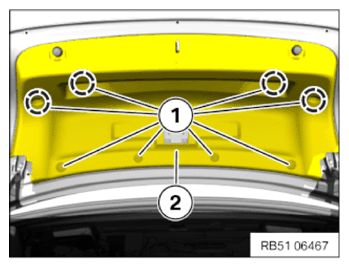

Position the tailgate trim panel (2) and secure with expanding rivets (1).
If installed: Attach and lock the plug connection of the switch for the automatic tailgate operation.

Courtesy of BMW OF NORTH AMERICA, INC.

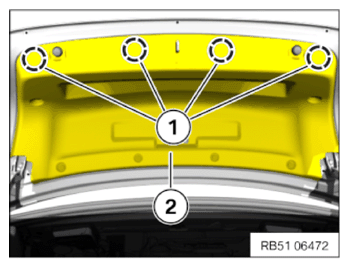

Clip in the tailgate trim panel (2) with the clips (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Description is for left component only. Procedure on the right side is identical.

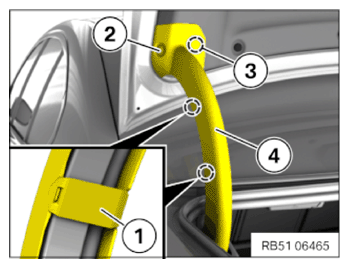

Clip in the trim panel for the hinge of the trunk lid (4) on the clip fastening (3).
Fasten expanding rivet (2).
Clip in lugs (1).

Courtesy of BMW OF NORTH AMERICA, INC.

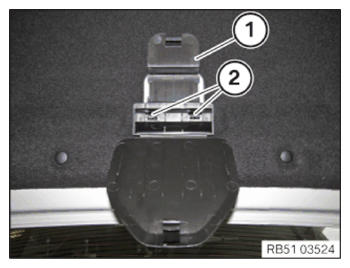

Position the bracket of the warning triangle (1) and clip it into the latch mechanisms (2).

Courtesy of BMW OF NORTH AMERICA, INC.

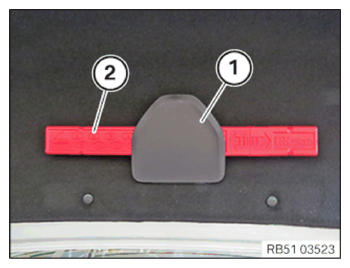

Install the warning triangle (2).
Clip in the cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.
