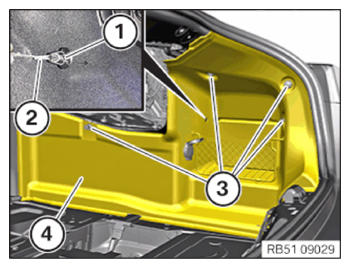

Install luggage compartment wheel arch trim panel on right

• Install the center armrest and connect any lock any connectors present.
• Correctly position the luggage compartment wheel arch trim panel.
• Mount the expanding rivets (3).
• Attach the cable.
• Clip- the luggage compartment in the luggage compartment wheel arch trim panel.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TOP LUGGAGE COMPARTMENT TRIM PANEL .
• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
