Install luggage compartment wheel arch trim panel

• Install the luggage compartment wheel arch trim panel and guide in the cable while doing so.

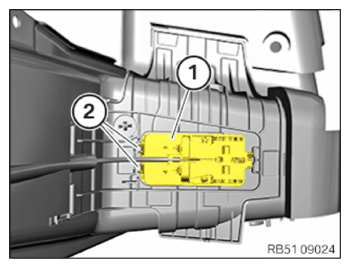

• Install the left the air duct and engage at the detents

  Courtesy of BMW OF NORTH AMERICA, INC.

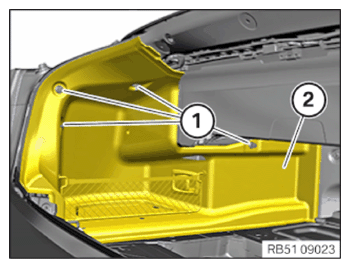

• Correctly position the luggage compartment wheel arch trim panel.
• Mount the expanding rivets (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

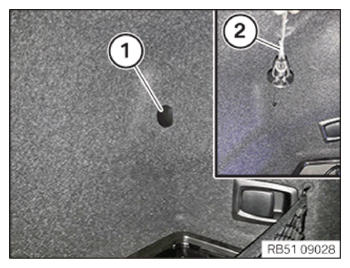

• Attach the cable.
• Clip- the luggage compartment in the luggage compartment wheel arch trim panel.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TOP LUGGAGE COMPARTMENT TRIM PANEL .
• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
