Installing the upper trim panel on rollover protection system

• Install the trim panel (3) and feed in the safety belts.
• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Stop pad to rollover protection system
  M6x20 screw	Tightening torque	4.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screws (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Trim panel of rollover protection system to body
  Oval-head screw with guard control Replace screws	Tightening torque	3 Nm

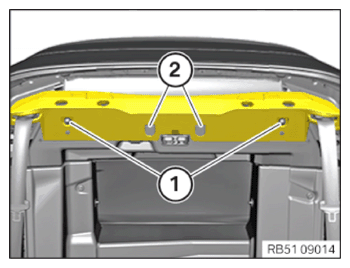

• Install cover panels (2).
• Install the stop pad (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

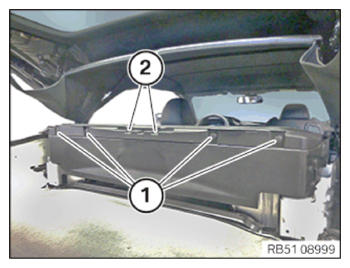

• Mount the expanding rivet on the left and right.

  Courtesy of BMW OF NORTH AMERICA, INC.

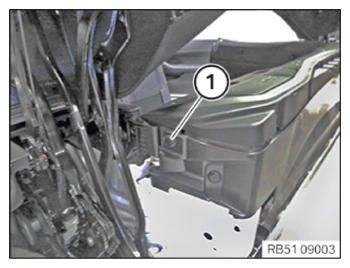

• Mount the expanding rivets (1).
• Tighten the screws (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Trim panel of rollover protection system to body
  Oval-head screw with guard control Replace screws	Tightening torque	3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  Installing the rear strap fitting on the left and right

  NOTE: TECHNICAL INFORMATION
  Clean all threaded belt connections  with micro-encapsulated outer and internal threads.
  Shavings or other debris must not remain in the components.
  If a microencapsulated screw is reused, it must be coated with the following screw locking agent: Loctite 243, medium strength.
  The screw connection must be completed within 10 minutes as hardening begins after this period.
  NOTE: Description is for left component only. Procedure on the right side is identical.

  Installing the strap fitting at the rear

  NOTE: TECHNICAL INFORMATION
  Clean all threaded belt connections  with micro-encapsulated outer and internal threads.
  Shavings or other debris must not remain in the components.
  If a microencapsulated screw is reused, it must be coated with the following screw locking agent: Loctite 243, medium strength.
  The screw connection must be completed within 10 minutes as hardening begins after this period.

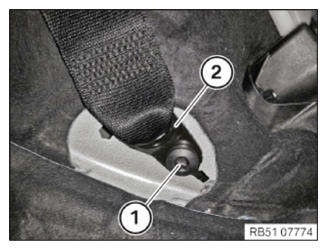

• Feed in and correctly position the strap fitting (2).
• Replace the screw (1).

  Parts:  Screw

• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATIONS



  End lining to body
  M10 Replace screw.	Tightening torque	42 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE REAR LEFT AND RIGHT HEAD RESTRAINT GUIDES .
• Refer to INSTALLING REAR LEFT AND RIGHT HEAD RESTRAINTS .
• Refer to INSTALLING THE REAR SEAT .
