Remove the decorative strip on the right dashboard

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components. Scratches, surface damage.

Protect working area.
Handle tools and components carefully.

Preliminary work

Refer to REMOVING THE SIDE PANEL ON THE RIGHT DASHBOARD .

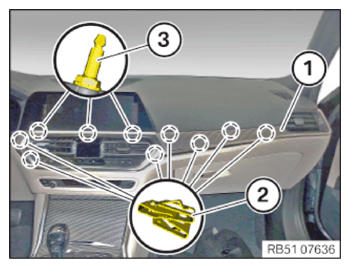

Unclip the decorative strip (1) toward the rear at the clamps (2) and pins (3).
Unlock associated plug connection and disconnect.
Remove decorative strip (1).
