Body Equipment -- Repair M4 (2 Of 2) (G82 & G83)
>>
51 45 Trim Panel, Instrument Panel
>>
51 45 195 Removing and installing instrument trim panel trim at bottom right (M4 2021-2023)
>>
Remove right footwell trim
Remove right footwell trim

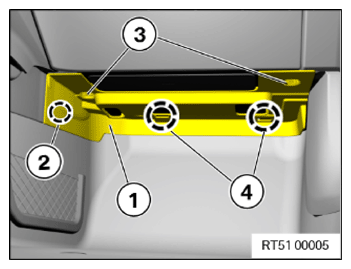

Turn the locks (3) by 90°.
Feed the footwell trim (1) out of the guide (2).
Detach the footwell trim (1) inward from the guides (4).
Unlock associated plug connection and disconnect.
Courtesy of BMW OF NORTH AMERICA, INC.
