Installing the armrest on the side trim panel

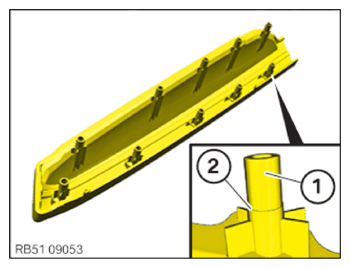

• Cut all the welding pins (1) of the armrest on mark (2) as shown.

  The welding pins (1) must not protrude from the side trim panel.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install the armrest.

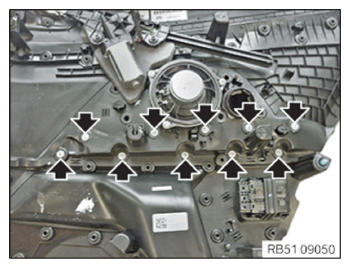

• Screw in and tighten the repair screws (arrows).
  TIGHTENING TORQUE SPECIFICATIONS



  Armrest on side trim panel
  Screw	tightening torque	1.8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE SOUND INSULATION ON THE SIDE TRIM PANEL .
• Refer to INSTALLING REAR TRIM PANEL .
• Refer to INSTALLING THE INNER DOOR SILL COVER STRIP .
• Refer to INSTALLING C-PILLAR TRIM PANEL .
• Refer to INSTALLING BACKREST SIDE SECTION .
• Refer to INSTALLING THE REAR SEAT .
