Attaching the rear outer window recess finisher strip

Precondition

The door window glass is open.

• Check weather strip (1) for damage and replace if necessary.
• Coat the window channel strip (1) with a suitable lubricant prior to installation.
  INSTALLATION AID



  Lubricants G14

  900 ml, Can

  83232360412

  Courtesy of BMW OF NORTH AMERICA, INC.

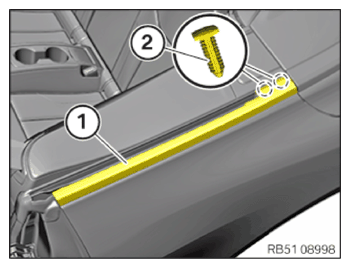

• Clip in window recess finisher strip (1) on the clips (2).
• Press down the window channel strip (1) across its entire length.
