Installing the tail light on the left and right side panels

Install the tail light on the side panel

Check

• Check seal (1) for damage, replace if necessary.

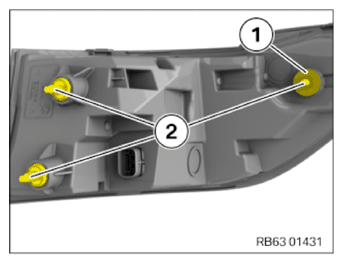

• Check threaded inserts (2) for damage.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » The threaded inserts are damaged.

  Measure

  • Replace tail light.

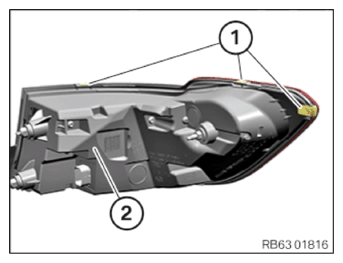

• Contact surfaces (1) on tail light (2) must not be damaged or missing.

  Missing contact surfaces (1) could cause paintwork damage.

  Courtesy of BMW OF NORTH AMERICA, INC.

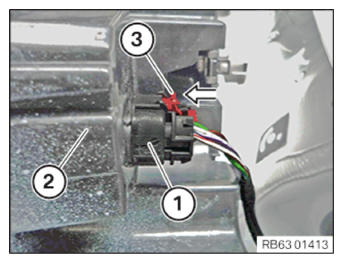

• Connect the connector (1) to the tail light on the side panel (2).

  The connector (1) must engage audibly.

• Lock (3) in the arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

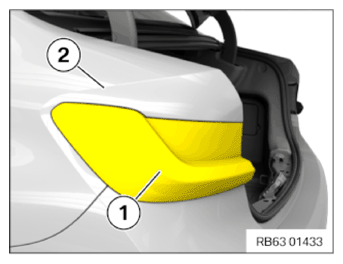

• Position tail light on the side panel (1) on the side panel (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

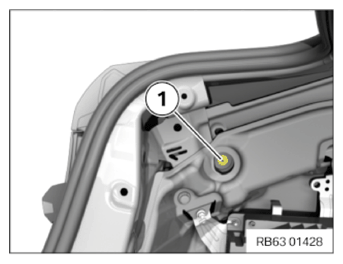

• Position the nut (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position tail light on the side panel (1) toward the front - at top.
• Move the contact surfaces (2) of the tail light on the side panel (1) upwards to contact.
• Hold the tail light on side panel (1) in position.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten nut (1).
  TIGHTENING TORQUES SPECIFICATION



  Tail light to side panel
  Nut M5, key range 8	Tightening torque	3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUES SPECIFICATION



  Tail light to side panel to body
  Combination hexagon nut	Tightening torque	4 Nm

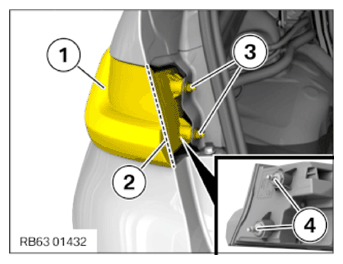

• Fit the nuts (3).
• Align the tail light on the side panel (1) to the connection line (2).

  The alignment is done by means of threaded inserts (4) on the tail light on side panel (2).

• If applicable, correct the position of the rear light on the side panel (1) by twisting the threaded inserts (4).
• Tighten nuts (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TRIM IN THE WATER CHANNEL ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE LEFT AND RIGHT .
• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
