Installing the undershield on the right side

NOTE: Description is for left component only. Procedure on the right side is identical.

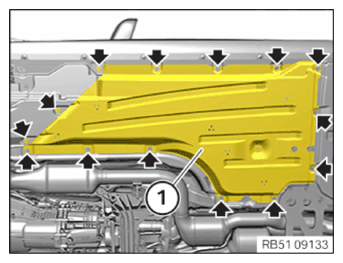

Installing the undershield on the sides

TIGHTENING TORQUE SPECIFICATIONS

Undershield
screw Tightening torque  2.6 Nm
Plastic nut Tightening torque  2.6 Nm
G15335225Courtesy of BMW OF NORTH AMERICA, INC.
