Body Equipment -- Repair M4 (1 Of 2) (G82 & G83)
>>
51 31 Front And Rear Window
>>
51 31 200 Removing and installing rear window (M4 2021-2023)
>>
Replacing the spacer
Replacing the spacer

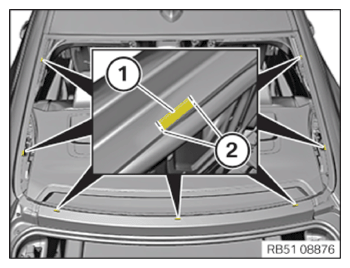

Completely remove available spacer buffers (1).
Glue new spacer buffers (1) centered on the body-side embossed marks (2).
Parts:
Spacer buffer
Courtesy of BMW OF NORTH AMERICA, INC.
