Installing gutter strip on the windshield

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.

NOTE: TECHNICAL INFORMATION
Detents, guides and mounting elements must not be damaged or missing.

Replace the gutter strip (1) and paint if necessary.
Parts: Gutter strip

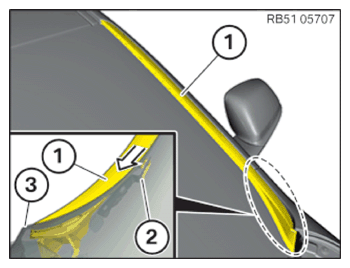

Feed in the gutter strip (1) at the side panel (3) carefully and insert it into the guide (2) in the arrow direction at the same time.

Courtesy of BMW OF NORTH AMERICA, INC.

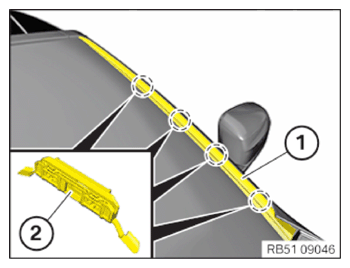

Clip in the gutter strip (1) beginning from below at the clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.

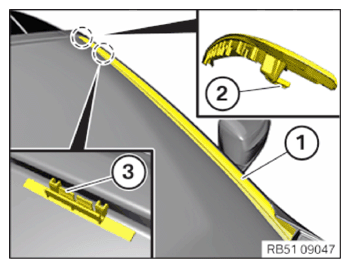

Feed in the gutter strip (1) at the top under the windshield with the retaining lug (2) and clip in at the clamp (3).

Courtesy of BMW OF NORTH AMERICA, INC.
