Replacement: Prepare windshield

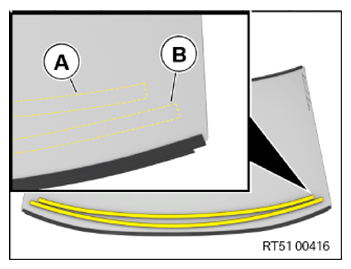

Observe marks (A) and (B) for the expanding foam tape on the windshield.

Courtesy of BMW OF NORTH AMERICA, INC.

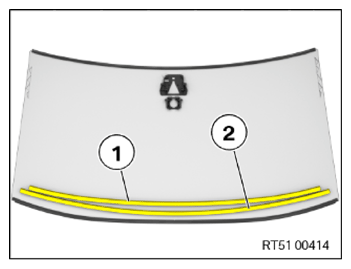

Affix the expanding foam tape (1) and (2) along the marks on the windshield.
Parts: Expanding foam tape

Courtesy of BMW OF NORTH AMERICA, INC.

Check

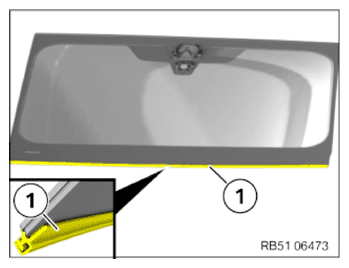

Check the guide (1) for the cowl cover for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The guide for the cowl cover is damaged.

Measure
Replace windshield.
