Installing windshield

• Prepare the glue cartridge with the standard nozzle C.

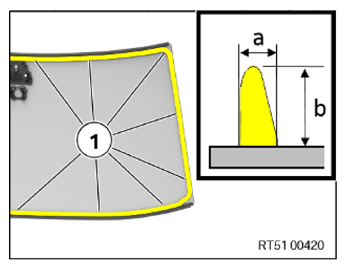

• Apply an adhesive bead within the marks (1)  on the windshield.

  Courtesy of BMW OF NORTH AMERICA, INC.

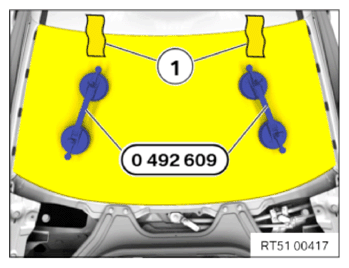

• Carefully feed in the windshield with the special tool 0 492 609 (51 3 010)  between the hood and the windshield panel.
• Fit the windshield at top.
• Evenly align the windshield at left and right.
• Fit the windshield at the bottom and press.
• Press the windshield upward until the rubber frame of the windshield evenly makes contact with the roof.
• Secure the windshield in this installation position with the two types of yellow plastic adhesive tape (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  TECHNICAL DATA SPECIFICATION



  Gap dimension windshield to roof outer skin
  1 windshield; 2 roof outer skin	4.3+1.2-1.2 mm
  Courtesy of BMW OF NORTH AMERICA, INC.	5.6+1.3-1.3 mm

Follow-up work

• Refer to INSTALLING WINDSHIELD PANEL COVER .
• Refer to INSTALLING LEFT AND RIGHT GUTTER STRIP ON THE WINDSHIELD .
• Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
• Refer to INSTALLING A-PILLAR TRIM PANEL, LEFT AND RIGHT .
• Refer to INSTALLING THE KAFAS CAMERA .
• Refer to INSTALLING INTERIOR REARVIEW MIRROR .
• Refer to INSTALLING THE COVERS FOR THE INTERIOR MIRRORS .
• Refer to CALIBRATING KAFAS CAMERA .
