Installing the windshield rubber frame

NOTE: Perform the steps on the left and right side.

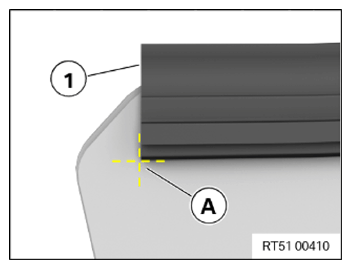

Note mark (A) for windshield rubber frame (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

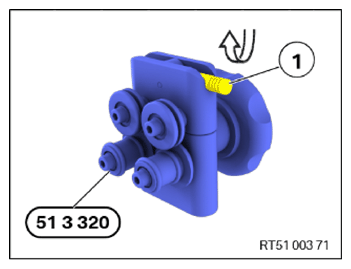

Move lever (1) in the arrow direction and open with the special tool 0 496 529 (51 3 320).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

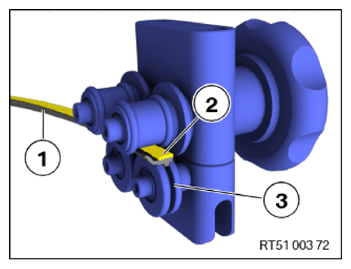

Detach protective film (2) in stages from adhesive tape.
Insert cover (1) into guides (3).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

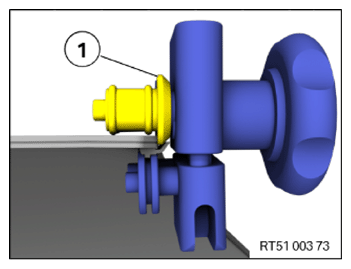

Place special tool with pressure rollers (1) on the window edge.
Align cover at outer edge of windshield.
Fit the cover and visually check for perfect position.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

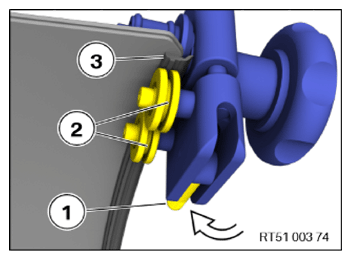

Move lever (1) in the arrow direction to close the special tool.
Ensure that cover (3) is positioned correctly in guide pulleys (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

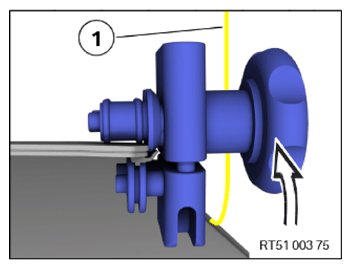

Continue to detach protective film (1) in stages from adhesive tape.
Use the handwheel to draw special tool in arrow direction over the entire upper edge of the window glass.
