Adjust the lower part of the tailgate lock lower section

Check

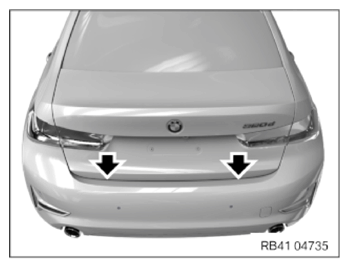

• Check the gap dimensions between the trunk lid and bumper cover (arrows).
  TECHNICAL DATA SPECIFICATION



  Gap dimension trunk lid to rear bumper panel
  1 trunk lid; 2 rear bumper panel Courtesy of BMW OF NORTH AMERICA, INC.	5.1+1.5-1.5 mm

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » Gap dimension does not correspond to the specification.

  Measure

• Adjusting tailgate lock.

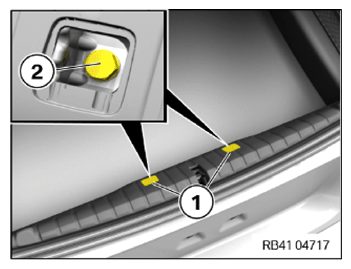

• Lever out the covers (1) with a suitable screwdriver and remove.
• Loosen screws (2) until the tailgate lock can be shifted.
• Adjust the trunk lid lock in such a way that the tailgate has the predefined gap dimension to the bumper cover.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screws (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Tailgate lock to body
  Hexagon screw M8x20	Tightening torque	19 Nm

• Install and clip in the covers (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

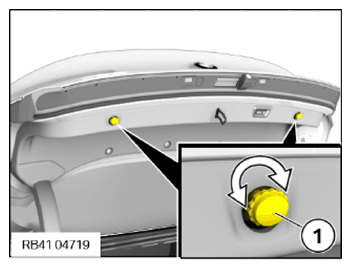

• Adjust the stop pad (1) by twisting in arrow directions.

  Courtesy of BMW OF NORTH AMERICA, INC.
