Adjusting/replacing bump stops and catches (M4 2021-2023)
The graphics are schematic representations and are to be applied to the relevant vehicle type.
Prerequisite: Lid must be correctly adjusted.
Following parts must not be damaged:
- Bump stop
- Catches

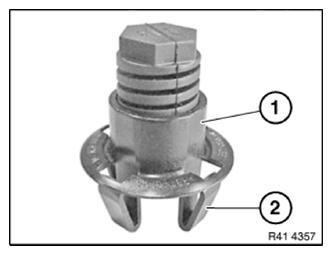

Remove adjusting buffer by pressing detents back.

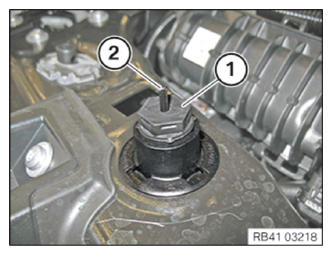

Screw adjusting buffer (1) until the pin (2) can be pulled out.
Slowly pull the pin (2) out approx. 15 mm.
Slowly close the hood.

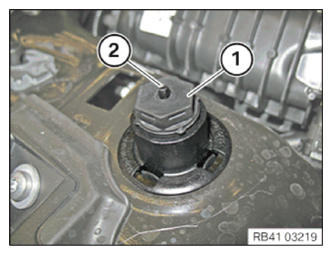

The pin (2) is thus pushed into the adjusting buffer (1).
Raise the hood.
Unscrew the adjusting buffer (1) until it is flush with the upper edge of the pin (2).
