Removing the right hood lock

Preliminary work

• Refer to REMOVING THE TOP RIGHT COVER IN THE ENGINE COMPARTMENT .
• Refer to ONLY ON VEHICLES WITH ACTIVE PEDESTRIAN PROTECTION .

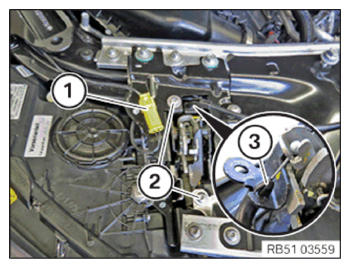

• Unlock plug connection (1) and disconnect.
• Loosen screws (2).
• Feed out the hood lock in an upwards direction.
• Detach the cable (3) and remove the hood lock.

  Courtesy of BMW OF NORTH AMERICA, INC.
