Installing the right hood lock

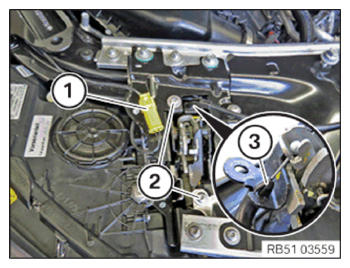

• Attach the cable (3).
• Feed in the hood lock.
• Replace screws (2).

  Parts:  Screws

• Tighten down screws (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Bonnet lock
  screw Replace screws	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connectors (1) and lock.

Follow-up work

• Refer to ONLY ON VEHICLES WITH ACTIVE PEDESTRIAN PROTECTION .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE TOP RIGHT .
