Replacing model name plate, rear (M4 2021-2023)

NOTE: This service information describes a general procedure for replacement and new bonding of model designations/lettering using the 335i (F30) as an example.
The procedure can be used for all models, positions and installation locations.
The model designation is attached with adhesive and can not be reused.
Refer to INSTRUCTIONS for securing components with adhesive tape!

CONSUMABLES :

Cutting cord

Masking tape 19 mm or 30 mm

Yellow plastic adhesive tape

Eraser disk

Cleaning agent R2

Replacing model designation (new or newly painted trunk lid):

NOTE: Transfer position of model designation (1) from old trunk lid by making an adhesive tape template.
For paintwork, keep adhesive tape template up to installation.

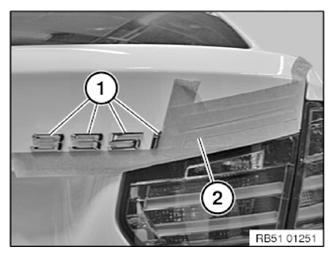

Stick masking tape (2) to nearby reference edges of trunk lid and therefore determine position of model designation (1).
Detach masking tape (2) completely and stick to same reference edges of new/painted trunk lid.
Check position, realign if required.
Refer to "Installation" operation for further procedure below.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing model designation:

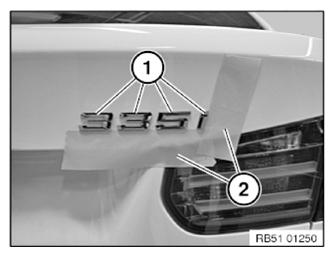

Mark position of model designation (1) with yellow plastic adhesive tape (2).

Coat separating string or twine with tensides (e.g. dish soap).

Cut through adhesive layer and remove model designation (1).

Refer to "Installation" operation for further procedure.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If required, remove adhesive layer residues with grinding wheel and/or cleaning agent R2.

Clean the adhesive area.

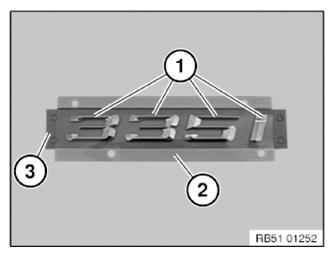

Number and letter combinations (1) of the model designation are not connected to each other and are supplied on a backing film (2).

Remove liner (3) (protective film for bonding surface).

Place model designation at marked position and press down firmly.

Remove backing film (2) and template.

Courtesy of BMW OF NORTH AMERICA, INC.
