Installing the rear emblem

NOTE: TECHNICAL INFORMATION
Notes on component bonding using adhesive tape form the basis for these repair instructions and must be observed without fail.
For additional information see: NOTES ON COMPONENT BONDING WITH ADHESIVE TAPE (M4 2021-2023) .

Replace the emblem.
Parts: Emblem
If applicable, remove adhesive residue from the tailgate.
Clean bonding surface (1).
CONSUMABLE SPECIFICATION

Cleaning agent R2 500 ml 83190417324

Courtesy of BMW OF NORTH AMERICA, INC.
Adhere to the air drying time of 2 min.

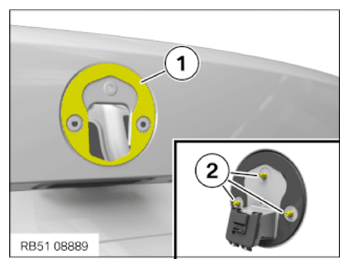

Check guide pins (2).
The guide pins (2) must not be damaged or missing.
- If installed: Installing the rearview camera (RFK)

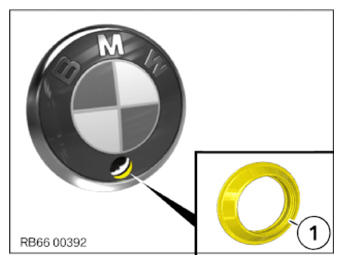

Check the sealing ring (1) for fit accuracy.

Courtesy of BMW OF NORTH AMERICA, INC.

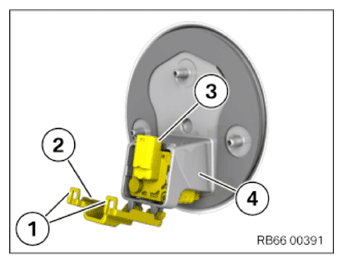

Insert the rearview camera (RFK) (3) in the socket of emblem (4).
Close the lid (2) and clip in with the detents (1).

Courtesy of BMW OF NORTH AMERICA, INC.

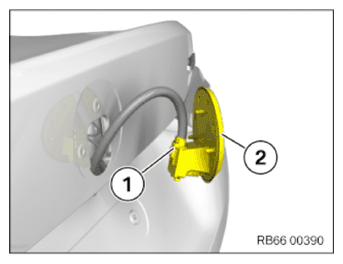

Attach the emblem (2) with the rearview camera (RFK).
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

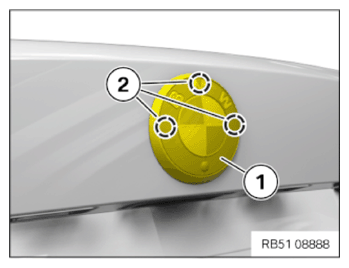

Detach the liner from adhesive tape of the emblem (1).
Position the emblem (1) correctly with guide pins (2) and press on firmly.
