Installing the front emblem

Replace the emblem.
Parts: Emblem
Clean the adhesive area on the hood.
CONSUMABLE SPECIFICATION

Cleaning agent R2 500 ml 83190417324

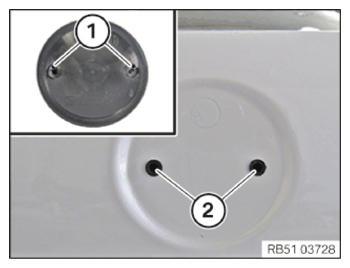

Check the guide pins (1) of the emblem for damage.
Check grommets (2) for damage and, if necessary, replace grommets (2).
Coat the guide pins (2) of the emblem (1) with lubricant.

Courtesy of BMW OF NORTH AMERICA, INC.

INSTALLATION AID

Lubricants G14 900 ml, Can 83232360412

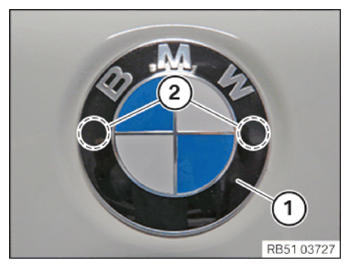

Detach the liner from the bonding surfaces of the emblem (1).
Insert emblem (1) in the nozzles with guide pins (2) and press on it all around.

Courtesy of BMW OF NORTH AMERICA, INC.
