Installing the trim strip at the rear window

Check

• Check lugs (1) on trim strip (2) for damage.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » The lugs (1) are damaged.

  Measure

• Replace the trim strip (2).

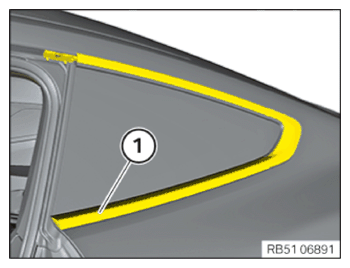

• Align the trim strip (1) on the side window at the rear on the body and clip it in on the side window.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TRIM STRIP .
