Installing the side attachment part

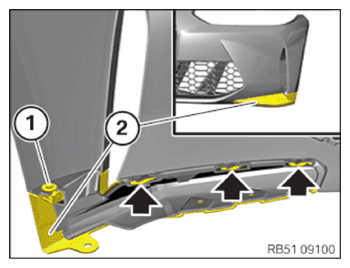

• Install attachment part (2)  and engage it into the detents (arrows).
• Tighten down screw (1)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Lateral attachment part to bumper cover
  Hexagon screw	Tightening torque	2.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING FOG LIGHT SUPPORT .
• Refer to PARTIALLY INSTALLING THE BUMPER BRACKET .
• Refer to INSTALLING BUMPER COVER, FRONT .
• Refer to PARTIALLY INSTALLING THE TEMPERATURE SENSOR .
• Refer to PARTIALLY INSTALLING THE FRONT LEFT AND RIGHT WHEEL ARCH TRIM PANELS .
• Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE FRONT HOOD SEAL .
