Body Equipment -- Repair M4 (1 Of 2) (G82 & G83)
>>
51 11 Bumper, Front
>>
51 11 157 Replace bumper cover, front (M4 2021-2023)
>>
Installing the left and right side attachment part
Installing the left and right side attachment part
NOTE:
Description is for left component only. Procedure on the right side is identical.

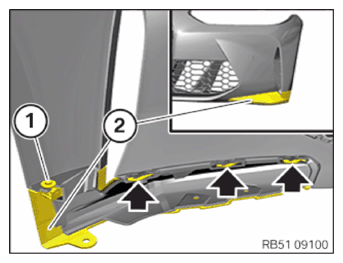

Installing the side attachment part
Install attachment part (2) and engage it into the detents (arrows).
Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATIONS
Lateral attachment part to bumper cover
Hexagon screw
Tightening torque
2.5 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
