Install front ornamental grille

Check

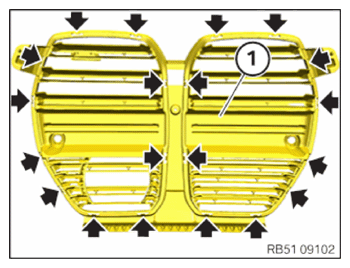

• Check detents (arrows) on the front ornamental grille (1) for damage.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » The detents (arrows) are damaged.

  Measure

• Replace the radiator grille.

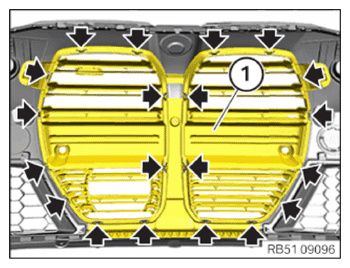

• Install the radiator grille (1) and snap onto the detents (arrows).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: The following step(s) must be performed if the listed component(s) is/are installed.

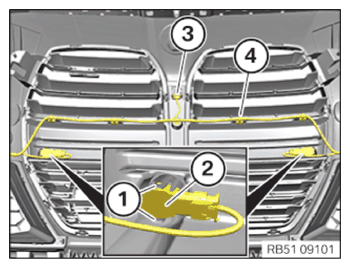

• Clip wiring harness (4) into the holders.
• Connect connectors (3) and lock.
• Install ultrasonic sensors (2) and engage them into detents (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING BUMPER COVER, FRONT .
• Refer to PARTIALLY INSTALLING THE TEMPERATURE SENSOR .
• Refer to PARTIALLY INSTALLING THE FRONT LEFT AND RIGHT WHEEL ARCH TRIM PANELS .
• Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE FRONT HOOD SEAL .
• Refer to INSTALLING THE FRONT EMBLEM .
• Refer to INSTALLING THE NUMBER PLATE BASEPLATE FOR THE LICENSE PLATE .
