Removing pedestrian protection sensor
WARNING:
Pyrotechnic components.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: 72 00 SAFETY REGULATIONS ON HANDLING COMPONENTS WITH GAS GENERATORS .
NOTE:
RISK OF DAMAGE
Mechanical effects.
Paint damage.
Mechanical effects.
Paint damage.
- Mask those working areas at risk with yellow plastic adhesive tape.
- Remove and install heavy or bulky components with the aid of another person/other persons.
NOTE:
TECHNICAL INFORMATION
In order to guarantee the quality of the Driver Assistance functions in vehicles with concealed radar sensors, the component may be repainted only in compliance with the repair specifications described in the appropriate service information "Standards for refinishing paint with a sensor system".
No stickers or films (transparent or colored) may be affixed in the transmission areas of the radar sensors.
If there are no radar sensors fitted, the component may be painted.
The following features can be used to identify whether radar sensors are installed on the vehicle:
Radar sensors are installed at the rear if the triangular warning light is present on the exterior mirror (in the mirror glass or on the mirror frame).
Radar sensors are installed at the front and rear if the triangular warning light is present on the exterior mirror (in the mirror glass or on the mirror frame) in conjunction with optional equipment S5ATA or S5AUA.
In order to guarantee the quality of the Driver Assistance functions in vehicles with concealed radar sensors, the component may be repainted only in compliance with the repair specifications described in the appropriate service information "Standards for refinishing paint with a sensor system".
No stickers or films (transparent or colored) may be affixed in the transmission areas of the radar sensors.
If there are no radar sensors fitted, the component may be painted.
The following features can be used to identify whether radar sensors are installed on the vehicle:
Radar sensors are installed at the rear if the triangular warning light is present on the exterior mirror (in the mirror glass or on the mirror frame).
Radar sensors are installed at the front and rear if the triangular warning light is present on the exterior mirror (in the mirror glass or on the mirror frame) in conjunction with optional equipment S5ATA or S5AUA.
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING SEAL FOR FRONT HOOD .
- Refer to REMOVING THE COVER FOR THE CENTER ENGINE COMPARTMENT .
- Refer to PARTIALLY RELEASING THE FRONT LEFT AND RIGHT WHEEL ARCH TRIM PANELS .
- Refer to PARTIALLY REMOVING TEMPERATURE SENSOR .
- Refer to REMOVING FRONT BUMPER COVER .
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

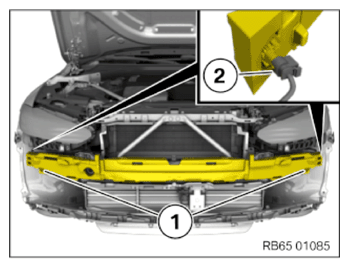

- Release the expanding rivet (1).
- Unlock plug connections (2) and disconnect.
- Feed out and remove the impact absorber on the support.

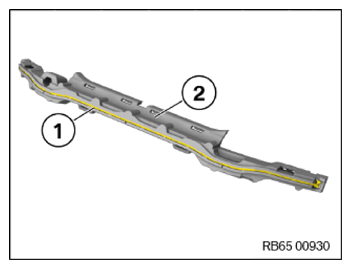

- Remove the pedestrian protection sensor (1) from the impact absorber (2).
