Installing the pedestrian protection sensor

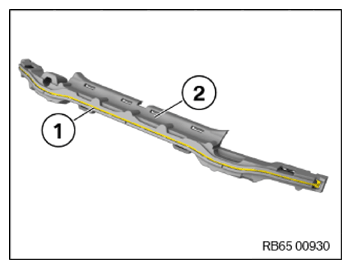

• Check impact absorber (2) for damage and replace if necessary.
• Carefully insert the pedestrian protection sensor (1) into the impact absorber (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

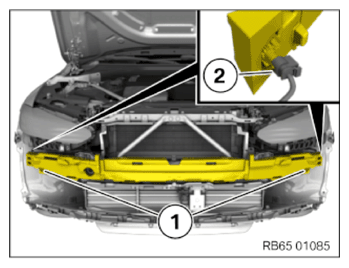

• Connect connectors (2) and lock.
• Hook the impact absorber into place below and press upwards.
• Secure expanding rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING BUMPER COVER, FRONT .
• Refer to PARTIALLY INSTALLING THE TEMPERATURE SENSOR .
• Refer to PARTIALLY INSTALLING THE FRONT LEFT AND RIGHT WHEEL ARCH TRIM PANELS .
• Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE FRONT HOOD SEAL .
• Refer to CONNECTING ALL BATTERY GROUND LEADS
