Remove the top right cover in the engine compartment
NOTE:
Description is for left component only. Procedure on the right side is identical.

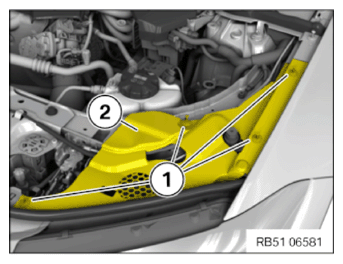

Remove the cover in the engine compartment on top
- Loosen the expanding rivet (1).
- Remove the cover in the engine compartment on top (2).
Courtesy of BMW OF NORTH AMERICA, INC.
|
