Body Equipment -- Repair M4 (2 Of 2) (G82 & G83)
>>
51 71 Gaskets And Loose Body Parts
>>
51 71 404 Removing and mounting/replacing front spoiler (M4 2021-2023)
>>
Installing the front spoiler
Installing the front spoiler

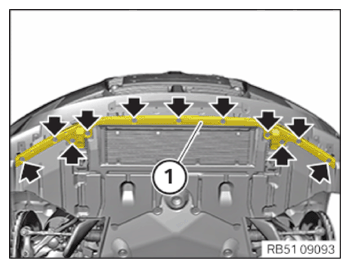

Install the front spoiler (1).
Tighten screws (arrows).
TIGHTENING TORQUE SPECIFICATIONS
Front spoiler
Oval-head screw
Tightening torque
2.6 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
