Install the decorative strip on the right dashboard

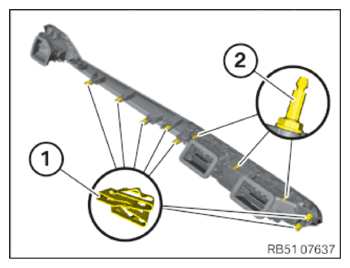

• Check clamp (1) for damage.

  Defective or missing clamps (1) need to be replaced.

• Check pins (2) and their clamps on the dashboard trim for damage and, if necessary, replace them.

  Courtesy of BMW OF NORTH AMERICA, INC.

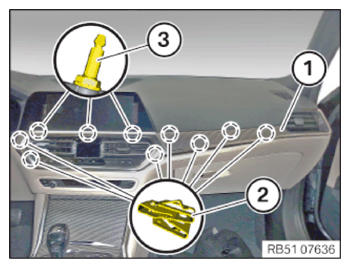

• Install the decorative strip (1).
• Connect and lock corresponding connectors.
• Correctly position the decorative strip (1) and clip in on the clamps (2) and pins (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE SIDE PANEL ON DASHBOARD ON THE RIGHT .
