Install the decorative strip on the dashboard on the left

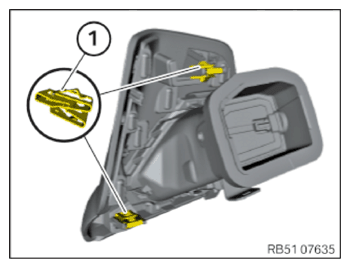

• Check whether the clamps (1) are present and have damage.

  Damaged or missing clamps (1) must be replaced.

  Courtesy of BMW OF NORTH AMERICA, INC.

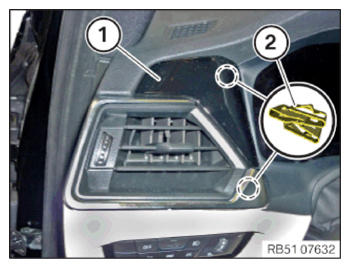

• Install the decorative strip (1).
• Connect respective connectors and lock.
• Clip the decorative strip (1) into the clamps (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE SIDE PANEL ON LEFT DASHBOARD .
