Removing the B-pillar trim panel

Preliminary work

• Refer to REMOVING REAR SEAT BENCH .
• Refer to REMOVING ARMREST SIDE SECTION .
• Refer to REMOVING C-PILLAR TRIM PANEL .
• Refer to REMOVING THE INNER DOOR SILL COVER STRIP .
• Refer to REMOVING REAR SIDE TRIM PANEL .

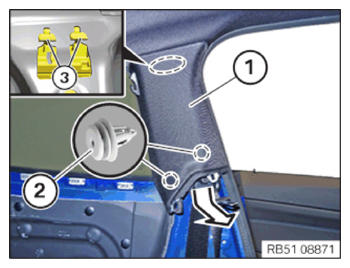

• Unclip B-pillar trim panel (1)  at the clips (2)  .
• Feed the B-pillar trim panel (1)  out of the edge protection lip and the guides (3)  in the arrow direction.
