Removing trim strip on rear side window
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING THE DECORATIVE TRIM .
NOTE:
RISK OF DAMAGE
Mechanical effects.
Paint damage.
Mechanical effects.
Paint damage.
- Mask those working areas at risk with yellow plastic adhesive tape.
- Remove and install heavy or bulky components with the aid of another person/other persons.

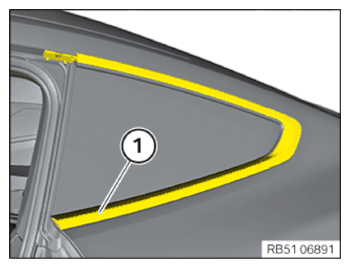

- Starting from the bottom front, carefully lever out the trim strip on the rear side window (1) using the special tool 0 496 569 (00 9 325)
.
