Remove the center console trim
Preliminary work
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.

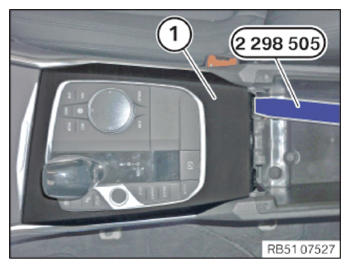

- Release and remove the center console trim (1) as shown with the special tool 2 298 505
upwards out of the detents.
Release the front area upward very carefully in order to prevent damage to the center console trim.
